软件设计讲解
2025-03-31
软件框架
软件设计图

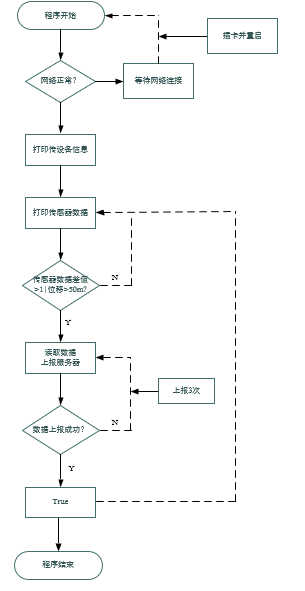

业务启动流程
代码讲解
数据管理
common.py的Storage 类是一个基于 Python 内置 dict 类的扩展，用于提供线程安全的字典存储，并支持从 JSON 文件加载和保存数据。
class Storage(dict):
def __init__(self, *args, **kwargs):
super().__init__(*args, **kwargs)
self.__lock__ = Lock()
self.__storage_path__ = None
def __enter__(self):
self.__lock__.acquire()
return self
def __exit__(self, *args, **kwargs):
self.__lock__.release()
def __from_json(self, path):
if self.__storage_path__ is not None:
raise ValueError('storage already init from \"{}\"'.format(self.__storage_path__))
if not ql_fs.path_exists(path):
ql_fs.touch(path, {})
else:
self.update(ql_fs.read_json(path))
def init(self, path):
if path.endswith('.json'):
self.__from_json(path)
else:
raise ValueError('\"{}\" file type not supported'.format(path))
self.__storage_path__ = path
def save(self):
if self.__storage_path__ is None:
raise ValueError('storage path not existed, did you init?')
ql_fs.touch(self.__storage_path__, self)
服务模块
1.Lbs_Service:提供Lbs数据定位服务
2.gnss_service:提供gnss数据定位服务
3.Sensor_service:提供传感器数据检测服务
4.Qth_client:提供数据上传和回调服务
各个service和client的关系图如下：
传感器数据采集
SensorService.py的SensorService 类是一个用于管理传感器数据采集和更新的服务类，主要负责初始化 I2C 通道和多个传感器（SHTC3、LPS22HB 和 TCS34725），并持续从这些传感器中读取温度、湿度、气压和 RGB 颜色值。它还负责将这些数据发送到指定的QTH 客户端。
class SensorService(object):
def __init__(self, app=None):
# i2c channel 0
self.i2c_channel0 = I2C(I2C.I2C0, I2C.STANDARD_MODE)
# SHTC3
self.shtc3 = Shtc3(self.i2c_channel0, SHTC3_SLAVE_ADDR)
self.shtc3.init()
# LPS22HB
self.lps22hb = Lps22hb(self.i2c_channel0, LPS22HB_SLAVE_ADDRESS)
self.lps22hb.init()
# TCS34725
self.tcs34725 = Tcs34725(self.i2c_channel0, TCS34725_SLAVE_ADDR)
self.tcs34725.init()
if app is not None:
self.init_app(app)
def __str__(self):
return '{}'.format(type(self).__name__)
def init_app(self, app):
app.register('sensor_service', self)
def load(self):
logger.info('loading {} extension, init sensors will take some seconds'.format(self))
Thread(target=self.start_update).start()
def get_temp1_and_humi(self):
return self.shtc3.getTempAndHumi()
def get_press_and_temp2(self):
return self.lps22hb.getTempAndPressure()
def get_rgb888(self):
rgb888 = self.tcs34725.getRGBValue()
logger.debug("R: {}, G: {}, B: {}".format((rgb888 >> 16) & 0xFF, (rgb888 >> 8) & 0xFF, rgb888 & 0xFF))
r = (rgb888 >> 16) & 0xFF
g = (rgb888 >> 8) & 0xFF
b = rgb888 & 0xFF
return r, g, b
def start_update(self):
prev_temp1 = None
prev_humi = None
prev_press = None
prev_temp2 = None
prev_rgb888 = None
while True:
data = {}
try:
temp1, humi = self.shtc3.getTempAndHumi()
logger.debug("temp1: {:0.2f}, humi: {:0.2f}".format(temp1, humi))
if prev_temp1 is None or abs(prev_temp1 - temp1) > 1:
data.update({3: round(temp1, 2)})
prev_temp1 = temp1
if prev_humi is None or abs(prev_humi - humi) > 1:
data.update({4: round(humi, 2)})
prev_humi = humi
except Exception as e:
logger.error("getTempAndHumi error:{}".format(e))
utime.sleep_ms(100)
try:
press, temp2 = self.lps22hb.getTempAndPressure()
logger.debug("press: {:0.2f}, temp2: {:0.2f}".format(press, temp2))
if prev_temp2 is None or abs(prev_temp2 - temp2) > 1:
data.update({5: round(temp2, 2)})
prev_temp2 = temp2
if prev_press is None or abs(prev_press - press) > 1:
data.update({6: round(press, 2)})
prev_press = press
except Exception as e:
logger.error("getTempAndPressure error:{}".format(e))
utime.sleep_ms(100)
utime.sleep_ms(100)
try:
rgb888 = self.tcs34725.getRGBValue()
logger.debug("R: {}, G: {}, B: {}".format((rgb888 >> 16) & 0xFF, (rgb888 >> 8) & 0xFF, rgb888 & 0xFF))
r = (rgb888 >> 16) & 0xFF
g = (rgb888 >> 8) & 0xFF
b = rgb888 & 0xFF
if prev_rgb888 is None:
data.update({7: {1: r, 2: g, 3: b}})
prev_rgb888 = rgb888
else:
prev_r = (prev_rgb888 >> 16) & 0xFF
dr = abs(r - prev_r)
prev_g = (prev_rgb888 >> 8) & 0xFF
dg = abs(g - prev_g)
prev_b = prev_rgb888 & 0xFF
db = abs(b - prev_b)
# 色差超过 150 即认为颜色有变化
if pow(sum((dr*dr, dg*dg, db*db)), 0.5) >= 150:
data.update({7: {1: r, 2: g, 3: b}})
prev_rgb888 = rgb888
except Exception as e:
logger.error("getRGBValue error:{}".format(e))
if data:
with CurrentApp().qth_client:
for _ in range(3):
if CurrentApp().qth_client.sendTsl(1, data):
break
else:
prev_temp1 = None
prev_humi = None
prev_press = None
prev_temp2 = None
prev_rgb888 = None
utime.sleep(1)
QTH平台客户端
QthClient 类是一个用于与 QTH（Quantum Technology Hub）平台进行通信的客户端类。它负责初始化、启动和管理与 QTH 平台的连接，并处理来自平台的各种事件和回调。
logger = getLogger(__name__)
class QthClient(object):
def __init__(self, app=None):
self.opt_lock = Lock()
if app:
self.init_app(app)
def __enter__(self):
self.opt_lock.acquire()
return self
def __exit__(self, *args, **kwargs):
self.opt_lock.release()
def init_app(self, app):
"""
初始化应用程序与Qth服务器的连接。
该方法将当前实例注册到应用程序中，并根据应用程序的配置信息初始化Qth客户端。
它设置了产品信息、服务器地址以及事件回调函数，以确保与Qth服务器的正确通信。
参数:
- app: 应用程序实例，必须包含正确配置的Qth产品密钥、产品密钥和服务器地址。
返回值:
无
"""
app.register("qth_client", self)
Qth.init()
Qth.setProductInfo(app.config["QTH_PRODUCT_KEY"], app.config["QTH_PRODUCT_SECRET"])
Qth.setServer(app.config["QTH_SERVER"])
Qth.setEventCb(
{
"devEvent": self.eventCallback,
"recvTrans": self.recvTransCallback,
"recvTsl": self.recvTslCallback,
"readTsl": self.readTslCallback,
"readTslServer": self.recvTslServerCallback,
"ota": {
"otaPlan":self.otaPlanCallback,
"fotaResult":self.fotaResultCallback
}
}
)
def load(self):
self.start()
def start(self):
Qth.start()
def stop(self):
Qth.stop()
def sendTsl(self, mode, value):
return Qth.sendTsl(mode, value)
def isStatusOk(self):
return Qth.state()
def sendLbs(self, lbs_data):
return Qth.sendOutsideLocation(lbs_data)
def sendGnss(self, nmea_data):
return Qth.sendOutsideLocation(nmea_data)
def eventCallback(self, event, result):
logger.info("dev event:{} result:{}".format(event, result))
if(2== event and 0 == result):
Qth.otaRequest()
def recvTransCallback(self, value):
ret = Qth.sendTrans(1, value)
logger.info("recvTrans value:{} ret:{}".format(value, ret))
def recvTslCallback(self, value):
logger.info("recvTsl:{}".format(value))
for cmdId, val in value.items():
logger.info("recvTsl {}:{}".format(cmdId, val))
def readTslCallback(self, ids, pkgId): #回调函数，回调传感器和位置数据
logger.info("readTsl ids:{} pkgId:{}".format(ids, pkgId))
value=dict()
temp1, humi =CurrentApp().sensor_service.get_temp1_and_humi()
press, temp2 = CurrentApp().sensor_service.get_press_and_temp2()
r,g,b = CurrentApp().sensor_service.get_rgb888()
value={
3:temp1,
4:humi,
5:temp2,
6:press,
7:{1:r, 2:g, 3:b},
}
#Proactively obtain lbs data and upload it to the server
lbs=lbs_service.LbsService()
lbs.put_lbs()
for id in ids:
if 3 == id:
value[3]=temp1
elif 4 == id:
value[4]=humi
elif 5 == id:
value[5]=temp2
elif 6 == id:
value[6]=press
elif 7 == id:
value[7]={1:r, 2:g, 3:b}
Qth.ackTsl(1, value, pkgId)
def recvTslServerCallback(self, serverId, value, pkgId):
logger.info("recvTslServer serverId:{} value:{} pkgId:{}".format(serverId, value, pkgId))
Qth.ackTslServer(1, serverId, value, pkgId)
def otaPlanCallback(self, plans):
logger.info("otaPlan:{}".format(plans))
Qth.otaAction(1)
def fotaResultCallback(self, comp_no, result):
logger.info("fotaResult comp_no:{} result:{}".format(comp_no, result))
def sotaInfoCallback(self, comp_no, version, url, md5, crc):
logger.info("sotaInfo comp_no:{} version:{} url:{} md5:{} crc:{}".format(comp_no, version, url, md5, crc))
# 当使用url下载固件完成，且MCU更新完毕后，需要获取MCU最新的版本信息，并通过setMcuVer进行更新
Qth.setMcuVer("MCU1", "V1.0.0", self.sotaInfoCallback, self.sotaResultCallback)
def sotaResultCallback(comp_no, result):
logger.info("sotaResult comp_no:{} result:{}".format(comp_no, result))
APP管理
__ init __.py的Application 是一个用于管理应用程序及其扩展的类，提供了初始化、注册扩展、加载扩展以及运行时打印设备信息的功能。
# Global context management class for storing and retrieving global variables
@Singleton
class Application(object):
"""Application Class"""
def __init__(self, name, version='1.0.0'):
self.__name = name
self.config = Storage()
self.__version = version
self.__extensions = OrderedDict()
def __repr__(self):
return '{}(name=\"{}\", version=\"{}\")'.format(type(self).__name__, self.name, self.version)
# Allows access to registered extensions through properties
def __getattr__(self, name):
return self.__extensions[name]
def register(self, name, ext):
if name in self.__extensions:
raise ValueError('extension name \"{}\" already in use'.format(name))
self.__extensions[name] = ext
def __powerOnPrintOnce(self):
output = '==================================================\r\n'
output += 'APP_NAME : {}\r\n'
output += 'APP_VERSION : {}\r\n'
output += 'FIRMWARE_VERSION : {}\r\n'
output += 'POWERON_REASON : {}\r\n'
output += 'DEVICE_IMEI : {}\r\n'
output += 'SIM_STATUS : {}\r\n'
output += 'NET_STATUS : {}\r\n'
output += '=================================================='
print(output.format(
self.name,
self.version,
modem.getDevFwVersion(),
Power.powerOnReason(),
modem.getDevImei(),
sim.getStatus(),
net.getState()[1][0]
))
# load all registered extensions and call their load method (if present)
def __loadExtensions(self):
for ext in self.__extensions.values():
if not hasattr(ext, 'load'):
continue
try:
ext.load()
except Exception as e:
sys.print_exception(e)
def run(self):
self.__powerOnPrintOnce()
self.__loadExtensions()
@property
def version(self):
return self.__version
@property
def name(self):
return self.__name
# Global application instance
CurrentApp = Application
