软件设计讲解

应用流程图

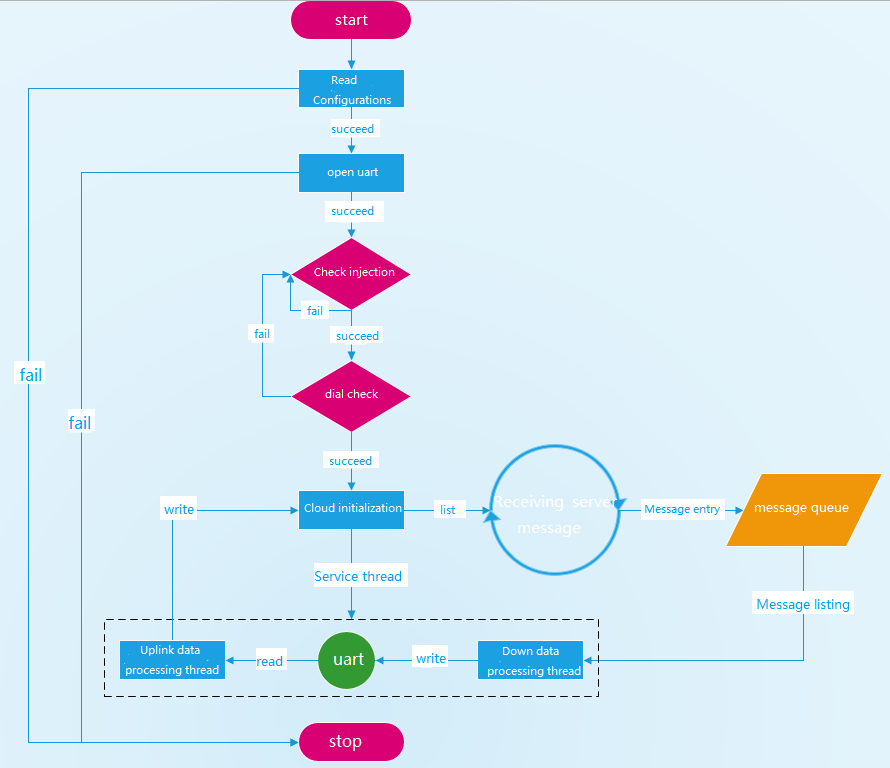

一般了解一个程序代码大多从启动部分开始,这里也采取这种方式,先寻找程序的启动源头。本例程,一般的程序启动顺序如下图所示:

整体上业务可以总结为如下流程:

  1. 启动喂狗线程(华系列 4G DTU 载有硬件狗)
  2. 初始化 DTU 对象后,读取系统配置
  3. 初始化串口外设
  4. 检查网络状态
  5. 初始化云端配置和消息队列
  6. 启动数据上下、下行业务线程

💡 基本原理:本 DTU 采用 多线程 + 消息队列 实现串口和云端数据的上下行转发。其中,上行线程(Uplink data thread)用于读取串口数据并发送至云端;下行线程(Downlink data thread)读取消息队列中的云端数据通过串口转发;消息队列用于缓存云端的下行数据。

目录结构

  • usr
    • _main.py:主脚本
    • dtu_config.json:配置文件
    • dtu.py:DTU 模型对象
    • logging.py:日志模块
    • cloud_abc.py:云对象模型抽象基类
    • mqttIot.py:Mqtt 云对象模型实现
    • network.py:网络
    • serial.py:串口模型对象实现
    • socketIot.py:Socket 云对象模型实现
    • threading.py:线程、队列和互斥锁
    • utils.py:工具类

API 说明

对象模型

本方案中定义了多个对象模型,其中主要有 DTU 对象模型、云对象模型(CloudABS)和串口对象模型(Serial)。

DTU对象模型

DTU类在 dtu.py 模块中定义,主要用于初始化串行端口、云以及上下游数据服务。

实现MQTT协议的云通信功能,提供连接、订阅、发布和监控功能。云对象初始化如下:

self.cloud = MqttIot(
    mqtt_config['client_id'],
    mqtt_config['server'],
    port=mqtt_config['port'],
    user=mqtt_config['user'],
    password=mqtt_config['password'],
    keepalive=mqtt_config['keepalive'],
    clean_session=mqtt_config['clean_session'],
    qos=mqtt_config['qos'],
    subscribe_topic=mqtt_config['subscribe'],
    publish_topic=mqtt_config['publish'],
    queue=self.queue,
    error_trans=True
)

实现TCP/UDP协议的云通信功能,提供连接、发送、接收和监听功能。socket对象初始化如下:

self.cloud = SocketIot(
    ip_type=socket_config['ip_type'],
    keep_alive=socket_config['keep_alive'],
    domain=socket_config['domain'],
    port=socket_config['port'],
    queue=self.queue,
    error_trans=True
)

up_transaction_handler 方法: 上行数据传输业务线程的入口函数。

down_transaction_handler 方法: 行数据传输业务线程的入口函数。

def down_transaction_handler(self):
    while True:
        topic, data = self.cloud.recv()
        logger.info('down transfer msg: {}'.format(data))
        self.serial.write(data)

def up_transaction_handler(self):
    while True:
        data = self.serial.read(1024, timeout=100)
        if data:
            logger.info('up transfer msg: {}'.format(data))
            self.cloud.send(data)

`run方法:启动业务操作,包括基于配置文件创建串行端口和云对象,以及为上下游行业创建业务数据处理线程。

Serial object model

  • In the serial.py module, the serial port model class Serial is defined. This class is mainly used to implement the read and write operations of the serial port. The main interfaces include:Serial
    • __init__: Serial port initialization.
    • open:Open the serial port.
    • close:Shut down the serial port.
    • write:Serial port write.
    • read:Serial port read.

Example of serial port::

from usr.serial import Serial

# init Serial object
s = Serial(port=2, baudrate=115200, bytesize=8, parity=0, stopbits=1, flowctl=0, rs485_config=None)
# open serial
s.open()

# serial write method
s.write(b"hello world!")

# serial read method
recv_data = s.read()
print(recv_data)

业务代码讲解

数传业务主要在 DTU 类(dtu.py)中实现,该类主要用于管理串口、云、以及数据的上下行业务。

DTU 对象在主脚本中通过调用 run 方法来开启整个 DTU 业务,其中该方法主要用于创建并运行两个线程,分别是上行数据处理线程(线程工作函数是 up_transaction_handler)和下行数据处理线程(线程工作函数是 down_transaction_handler)。在线程函数中分别通过两个 property 属性来获取对应的串口对象和云对象。其中串口对象属性是 serial,线程在调用该属性时即刻创建并打开配置的串口对象提供读写接口。其中云对象属性是 cloud,线程在调用该属性时即刻创建并连云对象提供接收和发送接口。

函数调用时序图:

sequenceDiagram Title: Device data transmit-processing timing participant cloud as cloud participant dtu as DTU participant serial as Serial loop down_transaction_handler thread cloud ->> dtu: cloud.recv dtu ->> serial: Serial.write end loop up_transaction_handler thread serial ->> dtu: Serial.read dtu ->> cloud: cloud.send end

上行数据处理线程函数 DTU.up_transaction_handler 实现如下:

class DTU(object):

    # ...

    def up_transaction_handler(self):
        while True:
            data = self.serial.read(1024, timeout=100)
            if data:
                logger.info('up transfer msg: {}'.format(data))
                self.cloud.send(data)

    # ...

up_transaction_handler函数按照 1KB 的 buffer 读取串口数据(用户可以自行调整buffer大小),并格式化消息后通过 CloudABC.send 接口发送数据至云端。用户继承 CloudABC 并自定义云对象并实现 。

下行数据处理线程函数 down_transaction_handler 实现如下:

class DTU(object):

    # ...

    def down_transaction_handler(self):
        while True:
            topic, data = self.cloud.recv()
            logger.info('down transfer msg: {}'.format(data))
            self.serial.write(data)

    # ...

down_transaction_handler 函数通过调用 CloudABC.recv 来获取下行消息,并通过 Serial.write 转发消息。
